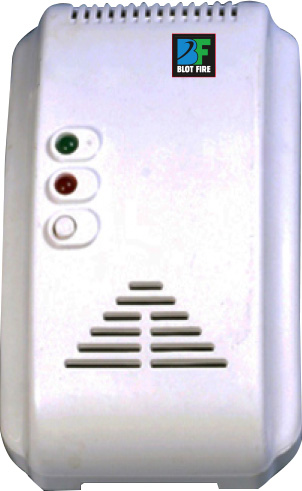

GD series gas leak alarm is a kind of wall-hung household gas alarm designed to detect the concentration of combustible and toxic gases or vapors
Provides visual and audible signals when the gas concentration reaches presetting level, remind you take prompt favorable action , you may start up other link equipment, ventilate gas or shut off gas supply to avoid fire, explosion, suffocation, and other evil accident
Alarms are available for liquefied petroleum gas (LPG), natural gas (methane), propane, hydrogen, town gas, smoke
Should be Installed in kitchen and other gas prone areas
Working voltage: AC 220V/110V +/- 15%/DC 24V/DC 12V
Target gas: combustible gas or CO
Power consumption: 3W
Working temperature: 0 to 55 deg. C
Humidity: < 95%
Response time: 30s automatic resume
Gas sampling: natural diffusion
Preset alarm point:
Combustible gas: 10%LEL
CO: 150ppm
H2: 1,000ppm
Alarm method: visual and audible
Alarm sound: 80dB
Weight: 270g
Dimensions (L x W x H): 126 x 78 x 37mm
Optional functions: relay output and gas shut off valve output
LPG/CNG Gas Leak Detectors
LPG Gas Leak detector
Key Specifications/Special Features:-

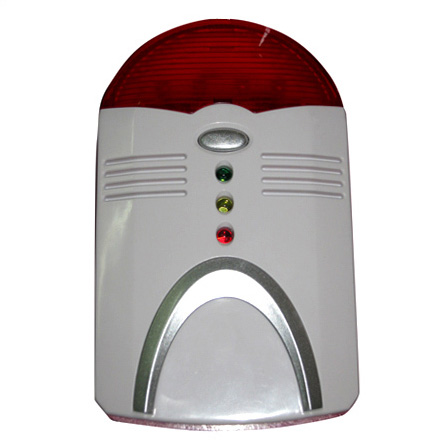

GK series gas leak alarm is a kind of wall-hung household gas alarm designed to detect the concentration of combustible and toxic gases or vapors
Provides visual and audible signals when the gas concentration reaches presetting level, remind you take prompt favorable action , you may start up other link equipment, ventilate gas or shut off gas supply to avoid fire, explosion, suffocation, and other evil accident
Alarms are available for liquefied petroleum gas (LPG), natural gas (methane), propane, hydrogen, town gas, smoke
Should be Installed in kitchen and other gas prone areas
Working voltage: AC 220V/110V +/- 15%/DC 24V/DC 12V
Target gas: combustible gas or CO
Power consumption: 3W
Working temperature: 0 to 55 deg. C
Humidity: < 95%
Response time: 30s automatic resume
Gas sampling: natural diffusion
Preset alarm point:
Combustible gas: 10%LEL
CO: 150ppm
H2: 1,000ppm
Alarm method: visual and audible
Alarm sound: 80dB
Weight: 270g
Dimensions (L x W x H): 126 x 78 x 37mm
Optional functions: relay output and gas shut off valve output
